Rizwan Flanges, a reputable manufacturer and supplier located in Manama, Bahrain, has built a solid reputation for delivering top-notch Super Duplex Steel Flanges to clients around the globe. With a keen emphasis on precision engineering and ensuring customer satisfaction, the company crafts flanges that boast outstanding strength, corrosion resistance, and durability. By employing cutting-edge manufacturing techniques and adhering to strict quality standards, Rizwan Flanges guarantees reliable performance, even in the toughest conditions. Their dedication to innovation, prompt delivery, and competitive pricing has made them a go-to supplier for sectors like oil & gas, petrochemicals, desalination, and marine applications.
Super Duplex Steel Flanges are primarily made up of high levels of chromium, nickel, molybdenum, and nitrogen, which provide exceptional resistance to pitting and corrosion. Their unique dual-phase microstructure, consisting of austenite and ferrite, ensures excellent tensile and yield strength, along with impressive impact toughness. These flanges are also highly resistant to stress corrosion cracking, fatigue, and environments rich in chlorides. The blend of chemical stability and mechanical strength makes them perfect for applications that demand long-lasting performance in harsh settings.
| Specifications | : | ASTM A182 / ASME SA182 |
| Size | : | 1/8″ NB TO 24″ NB |
| Standards | : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | : | S32750 / S32760 / S32950 |

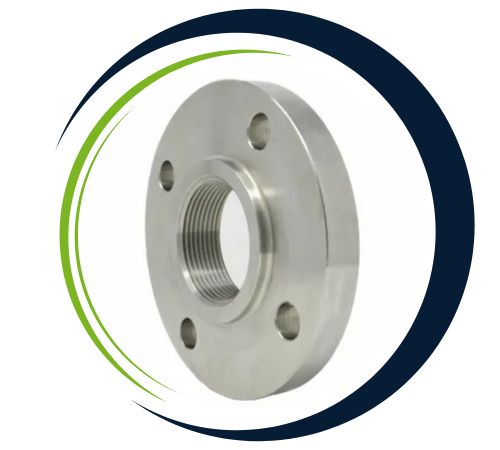

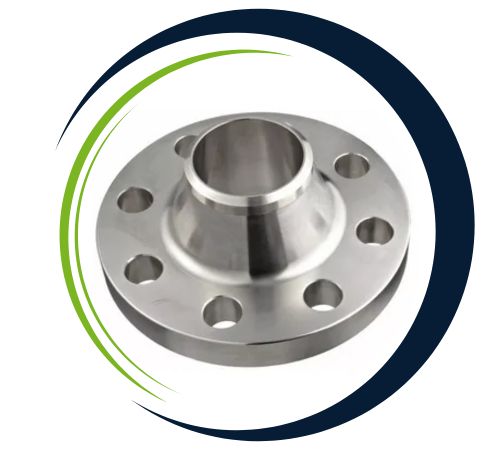

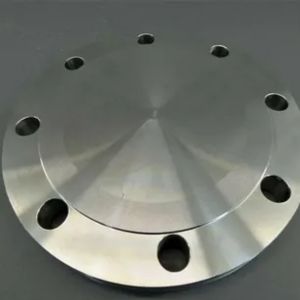

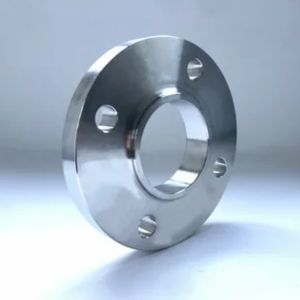

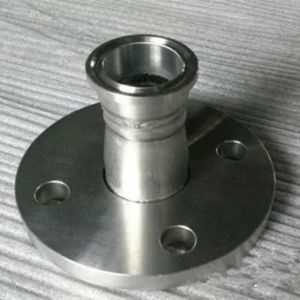

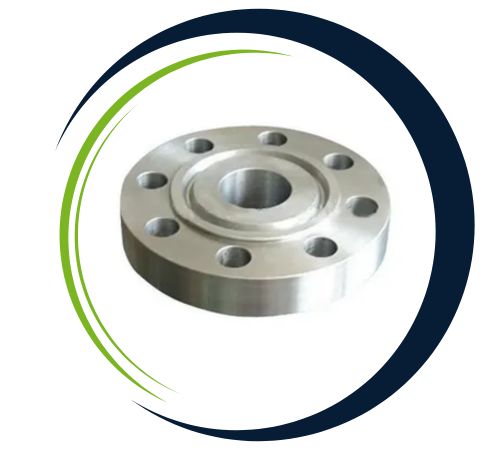

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of Super Duplex Steel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| % | ASTM A182 Super Duplex UNS S32750 And UNS 32760 Flanges |
| C | 0.03 maximum |
| Mn | 1.5 |
| Mo | 3.0-5.0 |
| Ni | 5.5-8.0 |
| N | 0.2-0.35 |
| Si | 0.8 |
| P | 0.035 |
| S | 0.02 |
| Cr | 24-26 |
| Cu | 0.5-3.0 |
| Tensile Strength (in MPa) | 770 |
| A5 Elongation (in %) | 25 |
| Proof Stress 0.2% (in MPa) | 550 |
Super Duplex Steel Flanges find extensive use in industries that prioritize high strength and corrosion resistance. They are crucial in offshore drilling, subsea pipelines, and petrochemical processing systems. Additionally, these flanges are vital in desalination plants, heat exchangers, and high-pressure chemical transport lines, thanks to their ability to endure aggressive and chloride-laden environments. In marine settings, they provide excellent protection against seawater corrosion. Furthermore, they are utilized in power generation, water treatment facilities, pulp & paper industries, and structural components where durability and resistance to stress corrosion cracking are essential.
| Normal Pipe Size | Flanges Diameter (‘O’) | Diameter of (B.C.) ‘A’ | Diameter of (B.H.) ‘D’ | Holes Number | Flanges Wall Thickness ‘C’ | Diameter (Flanges) at Weld Bevel | (Flanges) Diameter of Hub ‘E’ | Length Of Through Hub | Bore (‘B’) | Diameter of (RF) R | Depth of Socket Weld F | Threading Length | ||||
| SORF/ SWRF (Y) | WNRF (Y) | Lap Joit (Y) | SORF/ SWRF (B) | Lap Joit (B) | ||||||||||||
| 1/2” | 15 | 95.2 | 66.7 | 15.9 | 4 | 14.3 | 21.3 | 38.1 | 22.2 | 52.4 | 22.2 | 22.3 | 22.9 | 34.9 | 9.5 | 15.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4” | 20 | 117.5 | 82.5 | 19.0 | 4 | 15.9 | 26.7 | 47.6 | 25.4 | 57.1 | 25.4 | 27.7 | 28.2 | 42.9 | 11.1 | 15.9 |
| 1” | 25 | 123.8 | 88.9 | 19.0 | 4 | 17.5 | 33.5 | 54.0 | 27.0 | 61.9 | 27.0 | 34.5 | 35.0 | 50.8 | 12.7 | 17.5 |
| 1 | 32 | 133.3 | 98.4 | 19.0 | 4 | 20.6 | 42.2 | 63.5 | 28.6 | 66.7 | 28.6 | 43.2 | 43.7 | 63.5 | 14.3 | 20.6 |
| 1 | 40 | 155.6 | 114.3 | 22.2 | 4 | 22.2 | 48.3 | 69.8 | 31.7 | 69.8 | 31.7 | 49.5 | 50.0 | 73.0 | 15.9 | 22.2 |
| 2” | 50 | 165.1 | 127.0 | 19.0 | 8 | 25.4 | 60.4 | 84.1 | 36.5 | 73.0 | 36.5 | 62.0 | 62.5 | 92.1 | 17.5 | 25.4 |
| 2 | 65 | 190.5 | 149.2 | 22.2 | 8 | 28.6 | 73.1 | 100.0 | 41.3 | 79.4 | 41.3 | 74.7 | 75.4 | 104.8 | 19.0 | 28.6 |
| 3” | 80 | 209.5 | 168.3 | 22.2 | 8 | 31.8 | 88.9 | 117.5 | 46.0 | 82.5 | 46.0 | 90.7 | 91.4 | 127.0 | – | 30.2 |
| 3 | 90 | 228.5 | 184.2 | 22.2 | 8 | 34.9 | 101.6 | 133.4 | 49.3 | 85.7 | 49.3 | 103.4 | 104.1 | 140.0 | – | 31.7 |
| 4” | 100 | 273.0 | 215.9 | 25.4 | 8 | 38.1 | 114.3 | 152.4 | 54.0 | 101.6 | 54.0 | 116.1 | 116.8 | 157.2 | – | 33.3 |
| 5” | 125 | 330.2 | 266.7 | 28.6 | 8 | 44.4 | 141.2 | 188.9 | 60.3 | 114.3 | 60.3 | 143.8 | 144.5 | 185.7 | – | 36.5 |
| 6” | 150 | 355.6 | 292.1 | 28.6 | 12 | 47.6 | 168.4 | 222.2 | 66.7 | 117.5 | 66.7 | 170.7 | 171.4 | 215.9 | – | 39.7 |
| 8” | 200 | 419.1 | 349.2 | 31.7 | 12 | 55.6 | 219.2 | 273.0 | 76.2 | 133.3 | 76.2 | 221.5 | 222.2 | 269.9 | – | 44.4 |
| 10” | 250 | 508.0 | 431.8 | 34.9 | 16 | 63.5 | 273.0 | 342.9 | 85.7 | 152.4 | 111.2 | 276.3 | 277.4 | 323.8 | – | 49.2 |
| 12” | 300 | 558.8 | 488.9 | 34.9 | 20 | 66.7 | 323.8 | 400.0 | 92.1 | 155.6 | 117.3 | 327.1 | 328.2 | 381.0 | – | 55.6 |
| 14” | 350 | 603.2 | 527.0 | 38.1 | 20 | 69.9 | 355.6 | 431.8 | 93.7 | 165.1 | 127.0 | 359.1 | 360.2 | 412.7 | – | 57.1 |
| 16” | 400 | 685.8 | 603.2 | 41.3 | 20 | 76.2 | 406.4 | 495.3 | 106.4 | 177.8 | 139.7 | 410.5 | 411.2 | 469.9 | – | 63.5 |
| 18” | 450 | 742.9 | 654.0 | 44.4 | 24 | 82.6 | 457.2 | 546.1 | 117.5 | 184.1 | 152.4 | 461.8 | 462.3 | 533.4 | – | 68.3 |
| 20” | 500 | 812.8 | 723.9 | 44.4 | 24 | 88.9 | 508.0 | 609.6 | 127.0 | 190.5 | 165.1 | 513.1 | 514.3 | 584.2 | – | 73.0 |
| 24” | 600 | 939.8 | 838.2 | 50.8 | 24 | 101.6 | 609.6 | 717.5 | 139.7 | 203.2 | 184.1 | 615.9 | 615.9 | 692.1 | – | 82.5 |
Yes, we offer custom sizes for Super Duplex Steel Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
