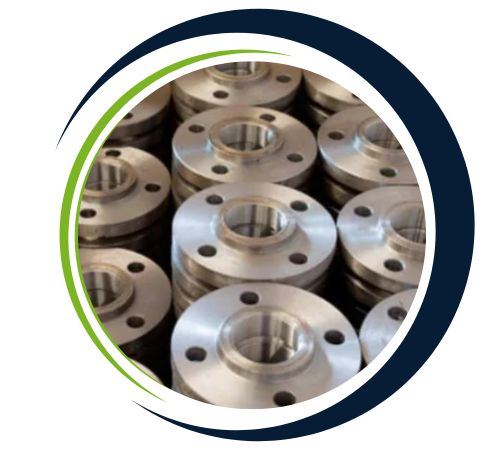

From the industrial heart of Manama, Rizwan Flanges has built a strong reputation for reliability and precision in the manufacturing sector. We take particular pride in producing EN 1092-1 Type 02 flanges, which are a cornerstone for robust piping systems. Our commitment extends beyond mere supply, focusing on delivering components that meet the demanding standards of industries both within Bahrain and across international markets, ensuring every connection we facilitate is built for performance and durability.
The composition of these Type 02 flanges, typically crafted from sturdy carbon or stainless steel, gives them their fundamental strength. They are designed to deliver specific mechanical properties, including excellent tensile strength and impressive pressure ratings, as strictly outlined in the EN 1092-1 standard. This thoughtful engineering ensures they can handle significant stress and strain, making them a dependable choice for creating secure and long-lasting sealed connections in a wide array of piping configurations.
Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of EN 1092-1 Type 02 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Pressure | PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,654 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 8 | 2,520 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 8 | 3,050 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,480 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,200 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,210 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,890 |
| 200 | 226 | 295 | 340 | 24 | 6 | 22 | M20 | 8 | 8.870 |
| 250 | 281 | 350 | 395 | 26 | 8 | 22 | M20 | 12 | 11,200 |
| 300 | 333 | 400 | 445 | 26 | 8 | 22 | M20 | 12 | 12,800 |
| 350 | 365 | 460 | 505 | 30 | 8 | 22 | M20 | 16 | 19,400 |
| 400 | 416 | 515 | 565 | 32 | 8 | 26 | M24 | 16 | 26,400 |
| 450 | 467 | 565 | 615 | 36 | 8 | 26 | M24 | 20 | 32,200 |
| 500 | 519 | 620 | 670 | 38 | 8 | 26 | M24 | 20 | 38,500 |
| 600 | 622 | 725 | 780 | 42 | 8 | 30 | M27 | 20 | 52,200 |
| 700 | 721 | 840 | 895 | 50 | 8 | 30 | M27 | 24 | 79,400 |
| 800 | 824 | 950 | 1015 | 56 | 8 | 33 | M30 | 24 | 112,000 |
| 900 | 926 | 1050 | 1115 | 62 | 8 | 33 | M30 | 28 | 135,000 |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,655 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 4 | 2,668 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 4 | 3,241 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,512 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,247 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,258 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,945 |
| 200 | 226 | 295 | 340 | 26 | 6 | 22 | M20 | 12 | 9,383 |
| 250 | 281 | 355 | 405 | 29 | 8 | 26 | M24 | 12 | 13,717 |
| 300 | 333 | 410 | 460 | 32 | 8 | 26 | M24 | 12 | 18,213 |
| 350 | 365 | 470 | 520 | 35 | 8 | 26 | M24 | 16 | 27,184 |
| 400 | 416 | 525 | 580 | 38 | 8 | 30 | M27 | 16 | 34,789 |
| 450 | 467 | 585 | 640 | 42 | 8 | 30 | M27 | 20 | 44,793 |
| 500 | 519 | 650 | 715 | 46 | 8 | 33 | M30 | 20 | 62,227 |
| 600 | 622 | 770 | 840 | 55 | 8 | 36 | M33 | 20 | 98,983 |
| 700 | 721 | 840 | 910 | 63 | 8 | 36 | M33 | 24 | 107,32 |
| 800 | 824 | 950 | 1025 | 74 | 8 | 39 | M36 | 24 | 152,44 |
EN 1092-1 Type 02 flanges, known for their robust design and durability, are widely used in industries that require secure and leak-proof piping connections. Commonly applied in oil and gas, petrochemical, power generation, and water treatment sectors, these flanges are ideal for pipelines carrying high-pressure fluids or gases. Their compatibility with various pipe materials and resistance to corrosion make them suitable for both offshore and onshore applications. Type 02 flanges are essential in ensuring safety, structural integrity, and ease of maintenance in complex piping systems.
Yes, we offer custom sizes for EN 1092-1 Type 02 Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
