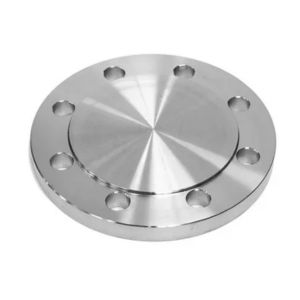

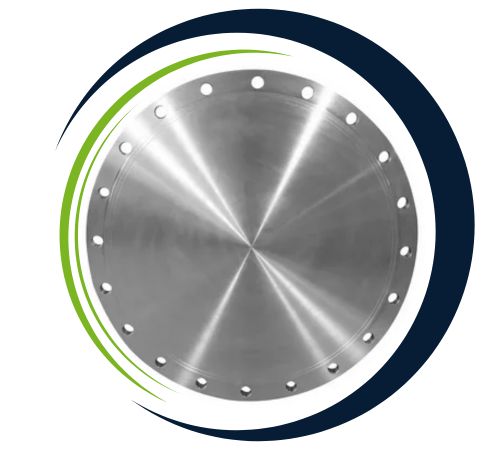

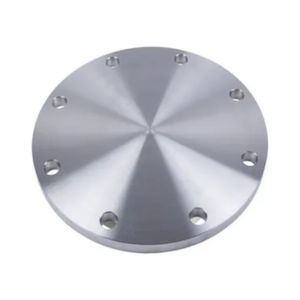

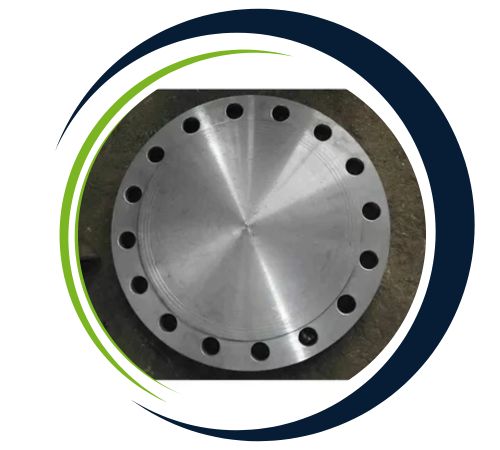

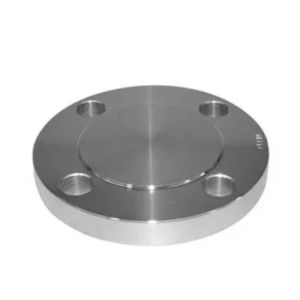

From the industrial heart of Manama, Rizwan Flanges stands as a trusted manufacturer and supplier of critical pipeline components. We specialize in the production of API – Type 6BX Blind Flanges rated for 15,000 PSI, engineered specifically for the most demanding high-pressure environments. Built to exacting international standards, these flanges are a testament to our commitment to safety, reliability, and superior performance. When your operations require uncompromising integrity under extreme pressure, our 6BX Blind Flanges provide the robust sealing solution you can depend on.
The composition of these 15,000 PSI 6BX Blind Flanges is meticulously controlled, typically forged from high-strength carbon or alloy steels to ensure unmatched toughness. Their mechanical properties are defined by rigorous standards, offering exceptional yield and tensile strength to withstand immense pressures without deformation. These flanges are designed with a special hub and a unique ring joint groove that creates a pressure-energized seal, meaning the higher the internal pressure, the tighter the seal becomes. This robust construction guarantees performance under the most severe service conditions.
Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of API – Type 6BX Blind Flanges 15,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Size | B | OD | C | E1 | Q (MAX.) | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| BX | |||||||||||||||||
| 1 13/16˝ | 46.8 | 210 | 3 | – | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | – | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16˝ | 53.2 | 220 | 3 | – | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54.0 | – | 10 | 174.60 | 8 | 26 | 152 |
| 2 9/16˝ | 65.9 | 255 | 3 | – | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100.0 | 57.1 | – | 10 | 200.00 | 8 | 29 | 153 |
| 3 1/16˝ | 78.6 | 290 | 3 | – | 7.54 | 119.00 | 154 | 64.3 | 154.0 | 122.2 | 63.5 | – | 10 | 230.20 | 8 | 32 | 154 |
| 4 1/16˝ | 104.0 | 360 | 3 | – | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73.0 | – | 10 | 290.50 | 8 | 39 | 155 |
| 5 1/8˝ | 131.0 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200.0 | 81.8 | 6.4 | 16 | 342.90 | 12 | 42 | 169 |
| 7 1/16˝ | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.60 | 16 | 42 | 156 |
| 9 ˝ | 229.4 | 650 | 6 | 12.7 | 12.70 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.40 | 16 | 51 | 157 |
| 11˝ | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427.0 | 235.7 | 12.7 | 16 | 711.20 | 20 | 54 | 158 |
| 13 5/8˝ | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.50 | 20 | 61 | 159 |
| 18 3/4˝ | 477.0 | 1160 | 6 | 18.3 | 18.26 | 577.90 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016.00 | 20 | 80 | 164 |
15,000 PSI, API Type 6BX Blind Flanges are essential parts in high-pressure systems, particularly in the oil, gas, and petrochemical industries. API 6BX Blind Flanges provide safe end closures, effectively isolating flow in pipelines, pressure vessels and high-stress equipment. Their construction facilitates effortless disassembly during maintenance or pressure testing without compromising leak prevention during critical operations. API 6BX Blind Flanges are used extensively in offshore drilling rigs, refineries, and wellhead assemblies, where safety and operational efficiency depend on a consistent, leak-free seal. Their toughness and versatility make them a first choice in the most demanding high-pressure applications.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Blind Flanges 15,000 PSI to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
