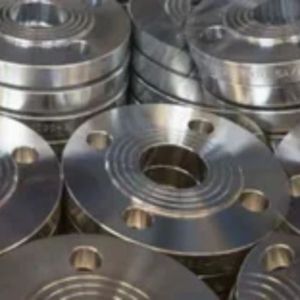

From the industrial hub of Manama, Bahrain, Rizwan Flanges has built a strong reputation for supplying robust and reliable piping components. We take particular pride in our comprehensive range of ANSI B16.47 Series A flanges, engineered for the most demanding large-diameter pipeline applications. These flanges are manufactured with precision to ensure a perfect fit and superior performance, providing a durable and leak-proof connection critical for maintaining the integrity of major industrial systems under high pressure and extreme conditions.
Our ANSI B16.47 Series A flanges are crafted from high-grade materials like carbon steel, stainless steel, and alloy steel, chosen for their exceptional strength and resilience. This careful material selection ensures outstanding mechanical properties, including high tensile strength and excellent yield strength, allowing them to withstand significant internal pressure and external loads. The precise manufacturing process guarantees these flanges meet rigorous dimensional standards, providing a secure and reliable seal that is built to last in challenging environments.

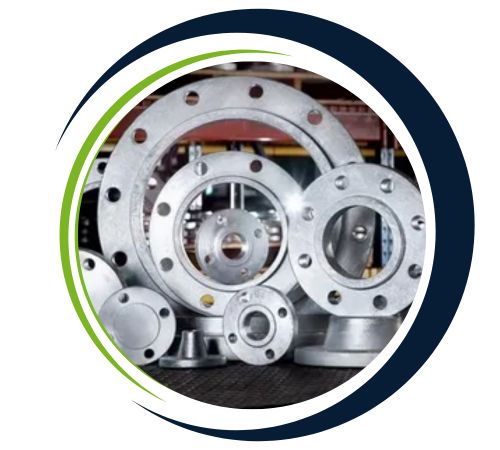

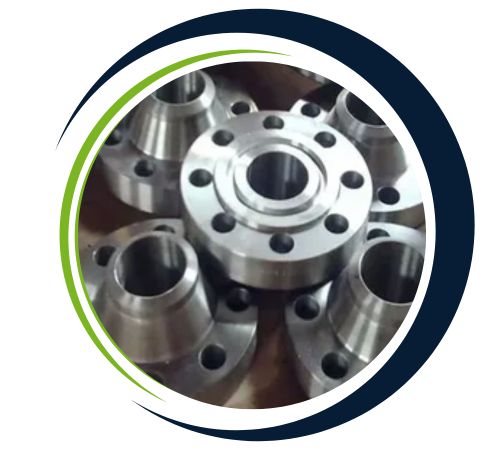

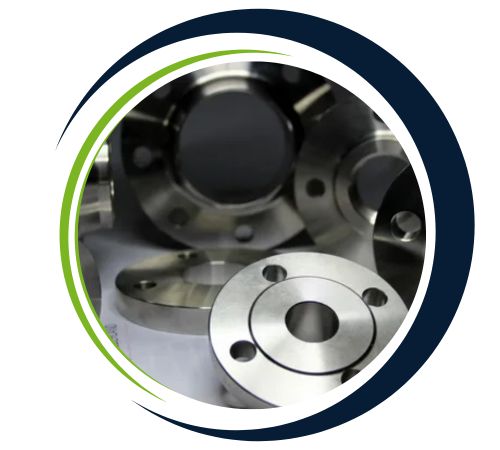

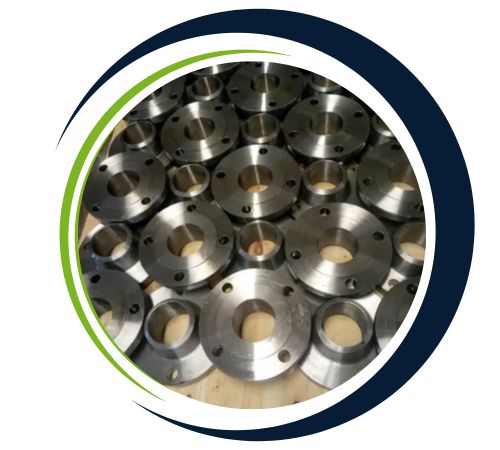

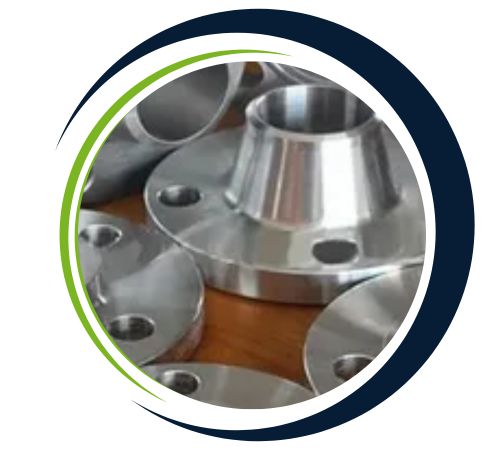

Rizwan Flanges, a leading supplier in Manama, Bahrain, offers an extensive selection of ANSI B16.47 Series A Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|

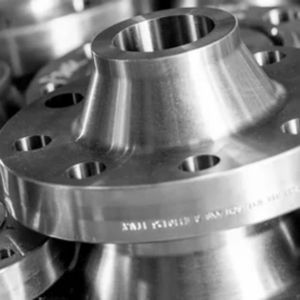

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
|
ASME B16.47 Series A Slip On Flange Class 150 LBS Dimensions
|
|||||||||
|
NPS |
A |
B |
I |
Holes |
C |
D |
F |
G |
Weight |
|
22″ |
750 |
563.6 |
35 |
20 |
46 |
80 |
610 |
641 |
72.66 |
|
26″ |
870 |
665.2 |
35 |
24 |
68.5 |
90 |
724 |
749 |
120.47 |
|
28″ |
925 |
716 |
35 |
28 |
71.5 |
95 |
781 |
800 |
136.16 |
|
30″ |
985 |
766.8 |
35 |
28 |
74.5 |
100 |
832 |
857 |
161.04 |
|
32″ |
1060 |
817.6 |
41 |
28 |
81 |
106 |
889 |
914 |
205.07 |
|
34″ |
1110 |
868.4 |
41 |
32 |
82.5 |
110 |
940 |
965 |
216.76 |
|
36″ |
1170 |
919.2 |
41 |
32 |
90.5 |
120 |
997 |
1022 |
265 |
|
38″ |
1240 |
970 |
41 |
32 |
87.4 |
120 |
1060 |
1073 |
297.15 |
|
40″ |
1290 |
1020 |
41 |
36 |
90.5 |
125 |
1111 |
1124 |
319.65 |
|
42″ |
1345 |
1071.6 |
41 |
36 |
97 |
130 |
1168 |
1194 |
363.84 |
|
44″ |
1405 |
1122.4 |
41 |
40 |
102 |
136 |
1219 |
1245 |
414.1 |
|
46″ |
1455 |
1173.2 |
41 |
40 |
103 |
144 |
1270 |
1295 |
437 |
|
48″ |
1510 |
1224 |
41 |
44 |
108 |
150 |
1327 |
1359 |
484.52 |
|
50″ |
1570 |
1274.8 |
48 |
44 |
111 |
160 |
1378 |
1410 |
521.23 |
|
52″ |
1625 |
1325.6 |
48 |
44 |
116 |
170 |
1435 |
1460 |
581.51 |
|
54″ |
1685 |
1376.4 |
48 |
44 |
121 |
178 |
1492 |
1511 |
652.63 |
|
56″ |
1745 |
1427.2 |
48 |
48 |
124 |
188 |
1540 |
1575 |
713.31 |
|
58″ |
1805 |
1478 |
48 |
129 |
195 |
1590 |
1626 |
799.81 |
|
|
60″ |
1855 |
1528.8 |
48 |
52 |
132 |
200 |
1657 |
1676 |
836.15 |
|
ASME B16.47 Series A Slip On Flange Class 300 LBS Dimensions |
|||||||||
| NPS | A | B | I | Holes | C | D | F | G | Weight |
| 22″ | 840 | 563.6 | 41 | 24 | 66.5 | 100 | 640 | 641 | 159 |
| 26″ | 970 | 665.2 | 44 | 28 | 79.5 | 130 | 720 | 749 | 238.15 |
| 28″ | 1035 | 716 | 44 | 28 | 85.5 | 147 | 775 | 800 | 295.5 |
| 30″ | 1090 | 766.8 | 48 | 28 | 92 | 160 | 825 | 857 | 338.8 |
| 32″ | 1150 | 817.6 | 51 | 28 | 98.5 | 170 | 880 | 914 | 395.57 |
| 34″ | 1205 | 868.4 | 51 | 28 | 102 | 180 | 935 | 965 | 446.43 |
| 36″ | 1270 | 919.2 | 54 | 32 | 105 | 190 | 990 | 1022 | 502.9 |
| 38″ | 1170 | 970 | 41 | 32 | 108 | 140 | 995 | 1029 | 256.33 |
| 40″ | 1240 | 1020 | 44 | 32 | 114 | 150 | 1050 | 1086 | 316.78 |
| 42″ | 1290 | 1071.6 | 44 | 32 | 119 | 156 | 1100 | 1137 | 343.98 |
| 44″ | 1355 | 1122.4 | 48 | 32 | 124 | 160 | 1150 | 1194 | 394.78 |
| 46″ | 1415 | 1173.2 | 51 | 28 | 129 | 170 | 1205 | 1245 | 455.19 |
| 48″ | 1465 | 1224 | 51 | 32 | 133 | 180 | 1255 | 1314 | 482.1 |
| 50″ | 1530 | 1274.8 | 54 | 32 | 140 | 190 | 1305 | 1359 | 557.35 |
| 52″ | 1580 | 1325.6 | 54 | 32 | 144 | 198 | 1355 | 1410 | 595.56 |
| 54″ | 1660 | 1376.4 | 60 | 28 | 152 | 210 | 1410 | 1467 | 741.05 |
| 56″ | 1710 | 1427.2 | 60 | 28 | 154 | 220 | 1465 | 1518 | 786.03 |
| 58″ | 1760 | 1478 | 60 | 32 | 159 | 228 | 1515 | 1575 | 824.35 |
| 60″ | 1810 | 1528.8 | 60 | 32 | 164 | 235 | 1585 | 1620 | 904.14 |
ANSI B16.47 Series A flanges are extensively utilized in high-pressure, large-diameter piping systems in various industries like oil and gas, petrochemicals, power generation, and marine engineering. The ANSI B16.47 Series A flanges are well-suited for critical applications where durability and strength are necessary, such as piping connections in refineries, offshore platforms, and thermal power plants. Series A flanges provide a larger bolt circle, enhancing stability and load distribution, and hence used in high-stress applications. Weld neck and blind flange types are usually accommodated with them, providing leak-proof joints and performance assurance with steam, gas, oil, and corrosive fluid systems.
Yes, we offer custom sizes for ANSI B16.47 Series A Flanges to meet specific project needs. Our team at Rizwan Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@rizwanflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
